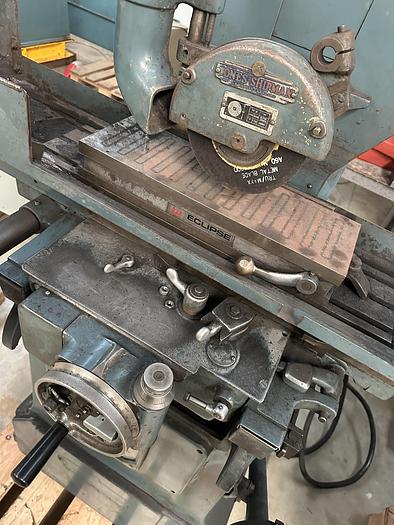

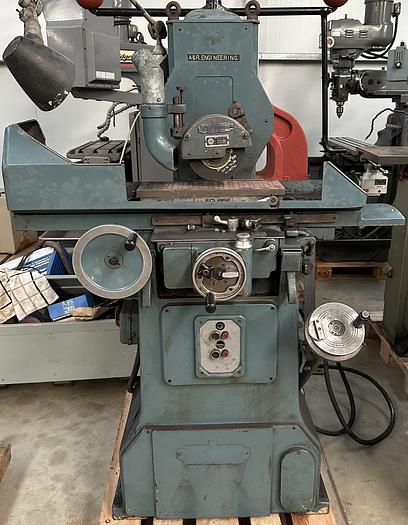

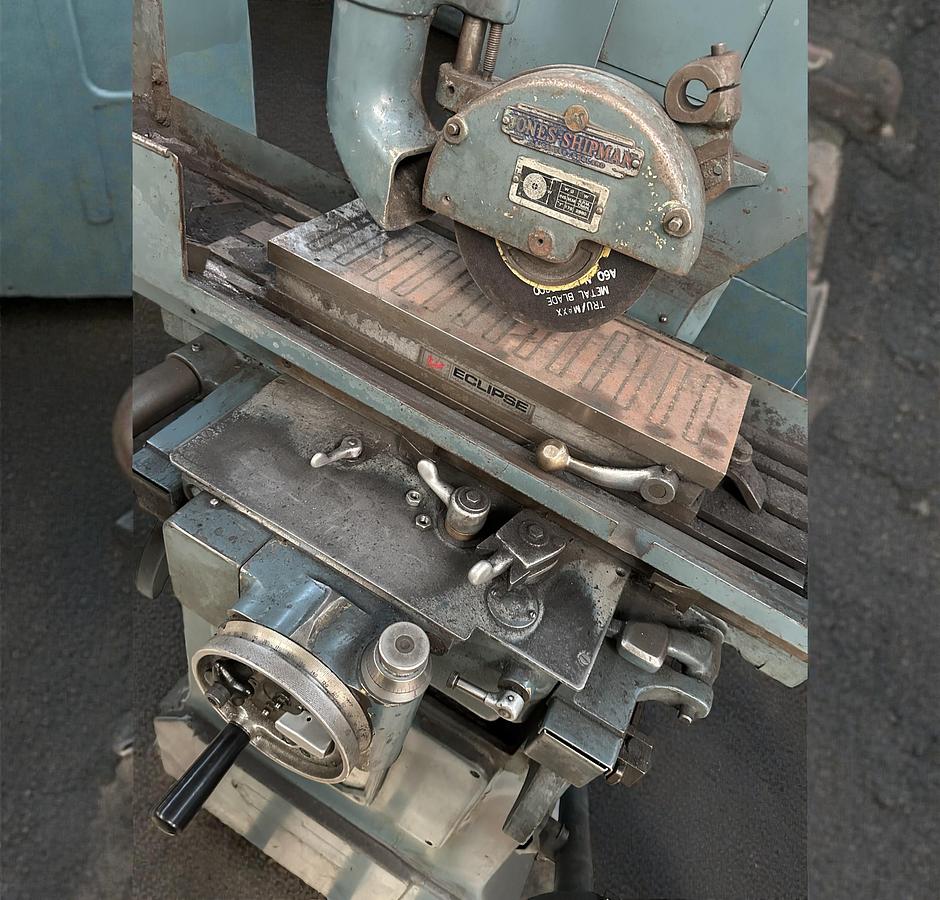

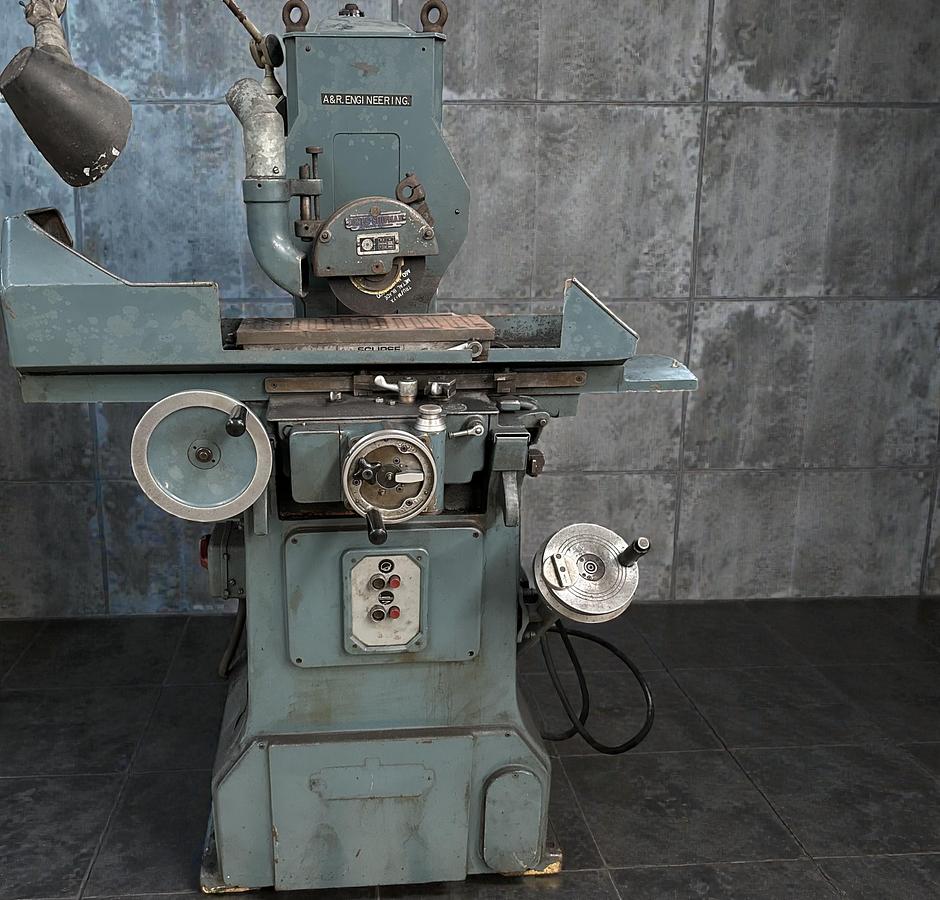

Jones & Shipman 540 Surface Grinder

Jones & Shipman 540 Surface Grinder

Table size 457 x 152mm.

Longitudinal travel of table 483mm.

Total cross traverse of table 168mm.

Traverse speed range per min 1,5 – 18m.

Table traverse per revolution of handwheel 60mm.

Grinding wheel size (standard) 180 x 13 x 31mm. 75mm bore.

Grinding wheel size (max) 180 x 25 x 31mm. 75mm bore.

Speed of grinding wheel 3000rpm.

Wheelhead motor 1.5kW.

Hydraulic pump motor 0.55kW.

Manual rise & fall to Wheelhead.

Weight 915Kg.
